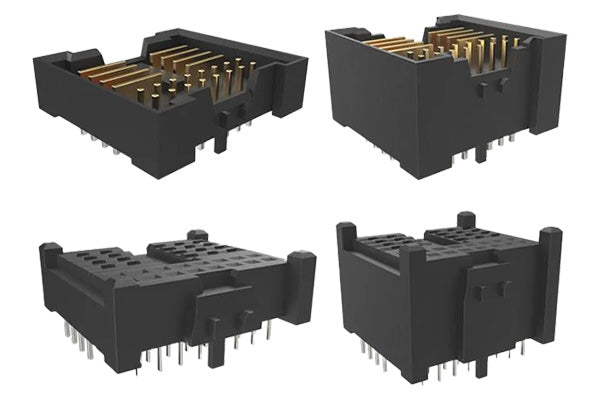

Amphenol FCI PwrBlade® MiniMezz connectors are available in stack heights ranging from 8mm to 20mm, with power and signal contact options. These connectors feature blind fit tabs that allow ±0.80 mm of meeting capacity for blind fit applications. PwrBlade MiniMezz connectors feature patented GCS® coating for power contacts and GXT® for signal contacts, allowing for lower contact resistance. Press-fit and solder tail terminations are available, providing termination flexibility for different PCB layouts. Amphenol FCI PwrBlade MiniMezz connectors feature modular tooling to accommodate a wide range of application requirements.
Characteristics:
- Hybrid power and signal connectors
- Modular tool design
- Mezzanine stack heights from 8mm to 20mm
- High and low power contacts
- Patented GCS coating for power contacts
- GXT coating for signal contacts
- Back plate termination with soldering and press fitting
- High blind pick-up capacity of ±0.8mm
Benefits:
- Supports wide range of voltage and current rating requirements
- Unlimited combinations of high power + low power + signal contacts
- Manufactured in 1mm increments to meet low profile requirements
- Higher current density in space-constrained applications
- Lower contact resistance
- Termination flexibility for different PCB layouts
- ±0.8 mm grouping capacity for blind positioning applications
Forms:
- Communication
- Data
- Consumer
- Doctor
- Industrial and instrumentation
