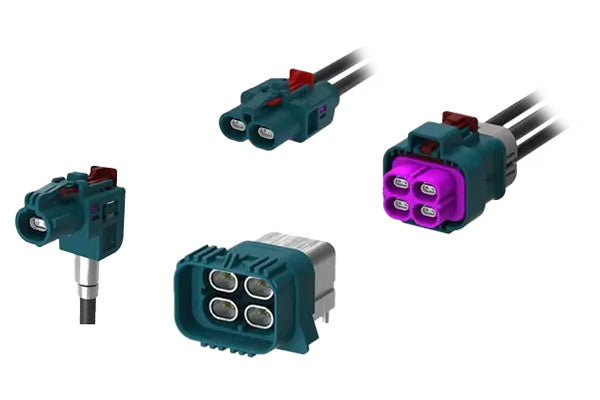

The Amphenol Commercial Ve-NET Automatic Multigigabit Connector System
It can transmit from 1000 Mb/s to 10 Gb/s according to 1000BASE-T1, 10GBASE-T1 and 50GBASE-CR. This connector system uses shielded twisted pair/shielded parallel pair cable to transmit data, and the entire system is designed in accordance with USCAR-2, LV214 and Ethernet specifications. The Ve-NET connector system emits an audible click when mated, preventing mating errors. The robust mechanical design prevents damage to the contact pin, and the primary and secondary lock crimp design ensures application flexibility. Amphenol's Ve-NET Auto commercial multi-Gigabit connector system is available in several sealed and unsealed configurations.
Characteristics:
- Automotive-grade Ethernet application
- Non-waterproof type
- Robust crimp design with primary and secondary lock
- Mechanical and visible color coding
- Audible click from connector to connector
- Mechanical and robust design
- Optional Connector Placement Assurance (CPA)
- Compatible with USCAR interface
Forms:
- Body Control Unit (BCU)
- Zone Control Unit (ZCU)
- To lead
- Radar
- Rear seat entertainment
- Camera systems
- Advanced driver assistance systems (ADAS)
- Infotainment
Specifications:
- Data rates of up to 50 Gb/s
- Compatible with USCAR-2 and LV214
- ≥25 mating cycles
- Lock holding force ≥110N
- 100Ω impedance rating
- Minimum insulation resistance of 100MΩ
- 1.5A current rating per contact
- 250V AC test voltage
- ≤60V DC working voltage
- Temperature range from -40°C to +105°C
- Available settings
- 1×1
- 1×2
- 2×2
- 2×3
