Stainless Tube Heat Exchanger Shell and Tube
Stainless Tube Heat Exchanger Shell and Tube
Stainless Steel Tubes for Heat Exchangers and Shell. Heat exchanger
Stainless Steel Tubes Shell for Heat Exchangers, Heat Exchanger manufactured in materials as per customer specification and request
We are specialists in the manufacture of tubes for heat exchangers and shell, heat exchanger , we always work on optimizing individual processing steps to improve product quality and reduce production times.
Fully automatic vertically drawn stainless steel shell tubes in a clamping on CNC-controlled horizontal machining centers. This achieves the highest possible accuracy and surface quality while reducing fabrication time.
Deflection plates are non-contact machined. Low thermal influence minimizes deformation. Cut edges remain burr free.
The heat exchanger shell stainless steel tubes are welded using orbital welding, a fully mechanical inert gas welding process in which the arc is guided 360 degrees around the stainless steel shell tubes without interruption. Welding parameters are digitally recorded.
On request, shell and tube heat exchanger tubes can be wound on the tube plate.

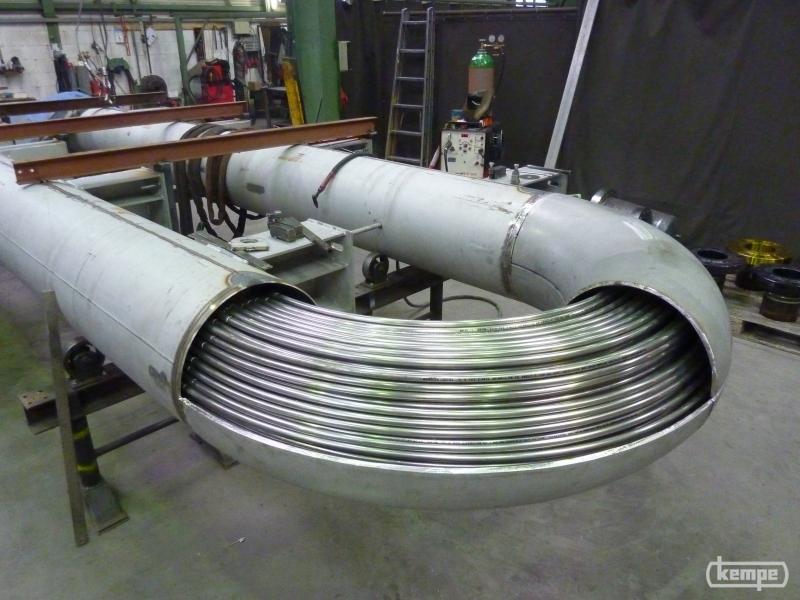

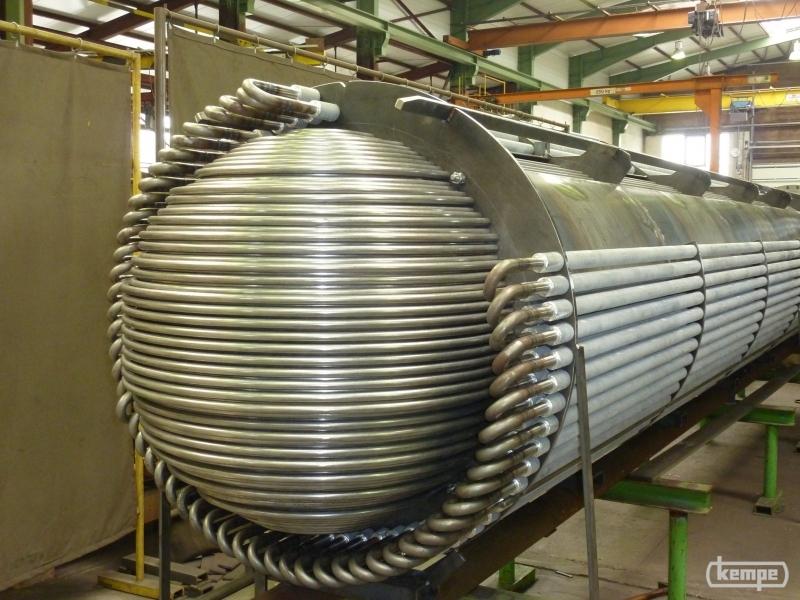

We manufacture tube shell for heat exchangers, heat exchanger - according to your specifications - in vertical and horizontal construction, with U-shaped tubes or with straight tube bundles. In addition to two-phase heat exchangers , technically complex special designs are also manufactured, such as stainless shell tubes for three-phase heat exchangers or tubes for heat exchangers , heat exchanger with a pull-out tube assembly and floating head gasket for high temperature ranges. .
CHECK THE TYPES OF STAINLESS STEEL PIPES WE WORK WITH
- Drawn Stainless Steel Tube
- Annealed Stainless Steel Tube
- Medium Hard Stainless Steel Tube
- Seamless Stainless Steel Tube
- Stainless Steel Tube With Seam
- Stainless Steel Tube Heat Exchanger Shell Tube
- Calendered Stainless Steel Tube
- Schedule Stainless Steel Tube
- Stainless Steel Tube Manufactured as per customer requirement
We work with Stainless Steel Tubes Shell Tube in different alloys.
AISI 304, AISI 304L, AISI 304H, AISI 316, AISI 316L, AISI 309, A-249, ASTM A 213, A-409, A-358, A-312, A-270, A-269 and other alloys as required of the customer.
Different thermal expansions between the tube and hull space can be absorbed with a compensator in the hull tube .
STAINLESS STEEL TUBES TABLE
| Item | Dia. Nominal | Dia. Ext. (mm) |
|
Ø1/8″
|
1/8″
|
10.29
|
|
Ø1/4″
|
1/4″
|
13.72
|
|
Ø3/8″
|
3/8″
|
17.15
|
|
Ø1/2″
|
1/2″
|
21.34
|
|
Ø3/4″
|
3/4″
|
26.67
|
|
Ø1″
|
1"
|
33.40
|
|
Ø1.1/4″
|
1.1/4″
|
42.16
|
|
Ø1.1/2″
|
1.1/2″
|
48.26
|
|
Ø2″
|
two"
|
60.33
|
|
Ø2.1/2″
|
2.1/2″
|
73.03
|
|
Ø3″
|
3″
|
88.90
|
|
Ø3.1/2″
|
3.1/2″
|
101.60
|
|
Ø4″
|
4″
|
114.30
|
|
Ø5″
|
5″
|
141.30
|
|
Ø6″
|
6″
|
168.28
|
|
Ø8″
|
8″
|
219.08
|
|
Ø10″
|
10″
|
273.05
|
|
Ø12″
|
12″
|
323.85
|
|
Ø14″
|
14″
|
355.60
|
|
Ø16″
|
16″
|
406.40
|
|
Ø18″
|
18″
|
457.20
|
|
Ø20″
|
20″
|
508.00
|
|
Ø22″
|
22″
|
558.80
|
|
Ø24″
|
24″
|
609.60
|
|
Ø30″
|
30″
|
762.00
|
