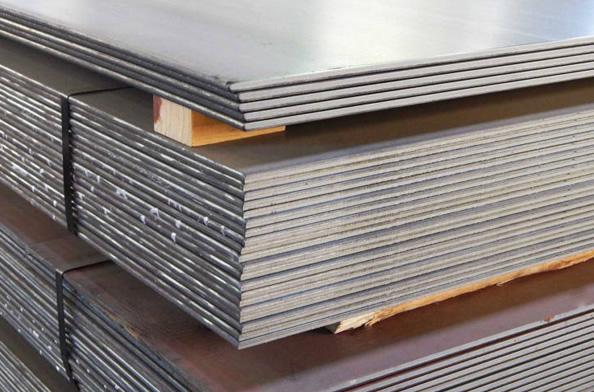

3/16" Carbon Steel Plate

CSN / Usiminas Quality and Traceability Certification. A 3/16" Carbon Steel Plate(4.75 mm) is a producthot rolled thin roll, manufactured according to standardsASTM A36and equivalents SAE 1008 / 1010 / 1020. It is a low to medium alloy carbon steel, widely used in structural applications, boilermaking and mechanical construction, combining strength, ductility and excellent weldability.

Features of 3/16" Carbon Steel Plate

With a thickness of4.75 mm, the3/16" sheet metalIt offers an ideal balance between mechanical strength and ease of forming. The material is produced by hot rolling, which ensures good structural homogeneity and consistent mechanical properties for industrial and structural use.

Technical Properties

• Rules: ASTM A36 / NBR 6650 / SAE 1008 – 1020
• Nominal thickness:3/16" (4.75 mm)
• Process:Hot Thin Rolled (LQ)
• Yield strength (Fy):≥ 250 MPa
• Tensile strength (Fu):400 – 550 MPa
• Minimum stretch: 20%
• Density:7.85 g/cm³
• Approximate weight:37.4 kg/m²
• Typical chemical composition (%): C ≤ 0.26 | Mn 0.60–1.20 | Si ≤ 0.40 | P ≤ 0.04 | S ≤ 0.05

Main Advantages

• Excellent weldability:compatible with MIG, TIG and coated electrode processes.
• High tensile strength:suitable for structural and mechanical applications.
• Ductility and formability:easy to cut, bend and shape without cracking.
• Availability:supplied in cut sheets or coils, made to measure.
• Guaranteed certification:traceable origin CSN / Usiminas.

Typical Applications

• Metal construction:beams, columns and structural reinforcements.
• Boilermaking and pipelines:tanks, reservoirs and low pressure pipelines.
• Automotive industry:structural components and vehicle chassis.
• Machinery and equipment:bases, chassis and parts subject to vibration.
• Civil construction:metal forms, supports and reinforced concrete reinforcements.
• Naval industry:applications on vessels, walkways and auxiliary structures.

Cutting and Forming Processes

• Court:compatible with oxyfuel, plasma, laser or industrial guillotine.
• Folding and calendering:ductility suitable for cold processes.
• Machining and drilling:good dimensional stability in precision parts.

Maintenance and Finishing

3/16" carbon steel must be protected against prolonged exposure to moisture or corrosive agents. For outdoor applications, the use ofepoxy paint, hot dip galvanizingor industrial protective coating. These measures significantly extend the sheet's service life in moderately aggressive environments.

Standards and Equivalences

• Brazil: NBR 6650 / NBR 11888 / NBR 5915
• United States:ASTM A36 / SAE 1008–1020
• Europe:EN 10025 S275JR
• Germany:DIN 17100 St 37-2
• Japan:JIS SS400

Why choose Compraço

• National reference inhot rolled sheetsand structural steel.
• Distribution with traceability and CSN / Usiminas certification.
• Custom processing — cutting, bending, chamfering and trimming.
• Technical control according to ASTM, SAE and NBR standards.
• Service for engineering, boilermaking, automotive and naval industries.

3/16" Carbon Steel Plate(4.75 mm) — versatile, durable, and of guaranteed origin. Ideal for structural applications, boilermaking, and industrial manufacturing.Purchaseprovides certified and custom-made sheets, with proven quality and delivery throughout Brazil.
