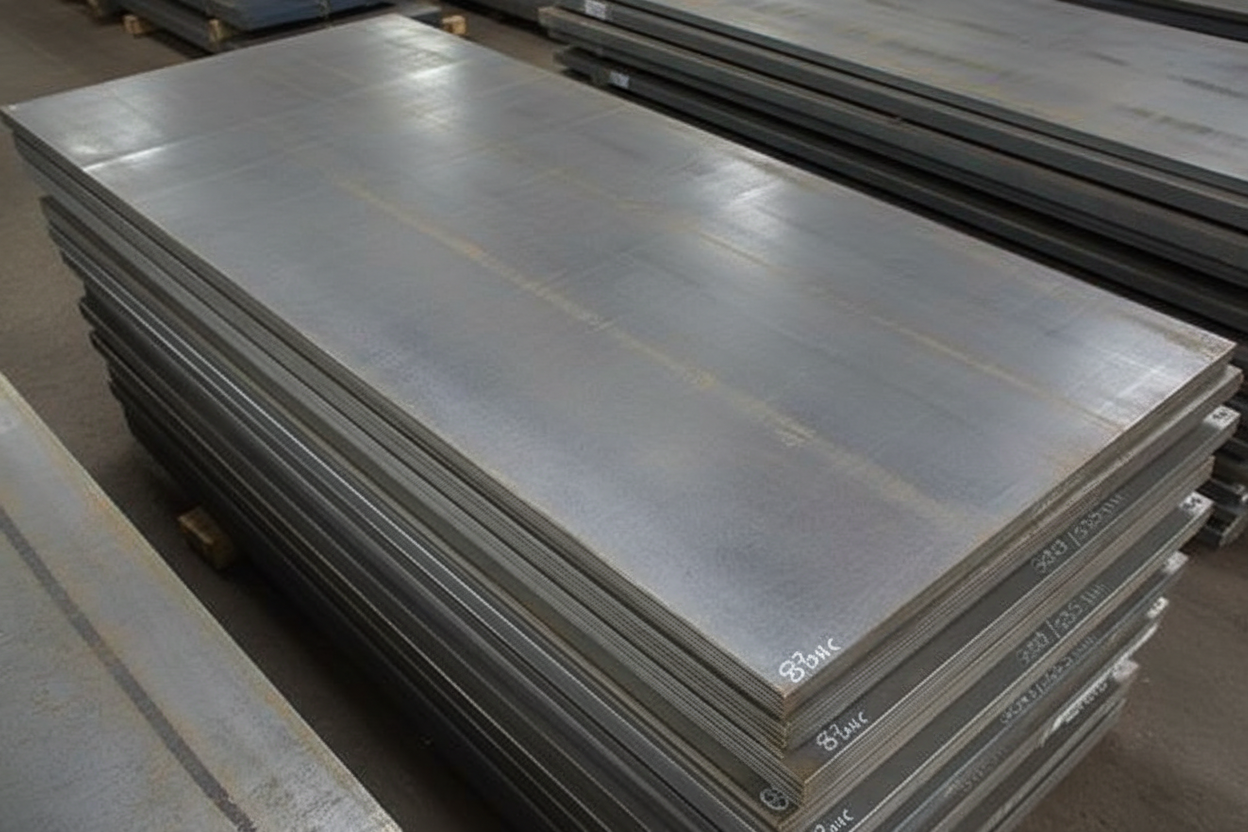

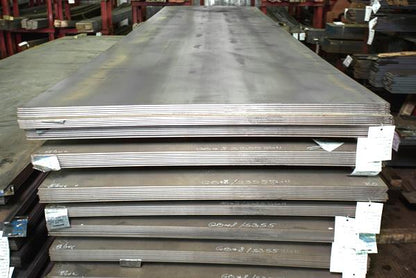

3/8" Carbon Steel Plate

CSN / Usiminas Quality and Traceability Certification. A 3/8" ASTM A36 carbon steel plate(9.53 mm) is ahot rolled thick plateWidely used in structural and mechanical applications requiring strength, durability, and excellent welding and forming performance. Produced according to the standardsASTM A36 e NBR 6650, is a versatile and economical material, ideal for infrastructure works, industrial manufacturing and heavy boilermaking.

Technical characteristics of 3/8" A36 Carbon Steel Plate

With nominal thickness of9.53 mm(or 10 mm), thethick plate A36presents an excellent balance between strength and formability. The process ofhot rollingIt gives the steel a uniform structure, excellent ductility, and a surface finish suitable for painting, galvanizing, or machining. The material is easily cut, bent, and welded, making it ideal for structural metal components.

Mechanical and chemical properties

• Rules:ASTM A36 / NBR 6650
• Nominal thickness:3/8" (9.53 mm)
• Yield strength (Fy):≥ 250 MPa (≈ 36 KSI)
• Tensile strength (Fu): 400 – 550 MPa (≈ 58–80 KSI)
• Minimum stretch:20%
• Modulus of elasticity:200 GPa
• Density:7.85 g/cm³
• Typical chemical composition (%): C ≤ 0.26 | Mn 0.60–1.20 | Si ≤ 0.40 | P ≤ 0.04 | S ≤ 0.05

Advantages of ASTM A36 Sheet

• High strength and reliability:ideal for structural components and load-bearing applications.
• Excellent weldability:compatible with MIG, TIG, submerged arc and coated electrode processes.
• Good conformability:easily accepts cutting, bending, calendering and technical chamfering.
• Industrial versatility:can be used in various production lines, from tanks to metal structures.
• Certified supply:full traceability originating fromCSN e Usiminas.

Applications of 3/8" A36 Carbon Steel Plate

A 3/8" A36 steel plateIt is a material widely used in industrial, mechanical and infrastructure sectors:

• Civil and metal construction
• Manufacturing of bridges, walkways and platforms
• Tanks, pressure vessels and boilers
• Agricultural machinery and heavy equipment
• Automotive and railway components
• Naval and offshore structures
• Wind power towers and support bases
• Mining and energy projects

Improvements and industrial processes

A Purchasecarries out the technical supply ofA36 sheetstailor-made, with the following benefits:

• CNC cutting (plasma, oxyfuel and waterjet)
• Bending, calendering and technical chamfering
• Refining, squaring and precision machining
• Dimensional control and inspection with technical report

Quality control and certification

AllASTM A36 platesprovided byPurchasefollow strict quality standards, with inspection according toASTM A6 e NBR 6650. Each batch is accompanied by chemical and mechanical reports issued by the plants, ensuring full traceability and technical compliance.

International standards and equivalences

• Brazil: NBR 6650 / NBR 11888 / NBR 5915
• United States:ASTM A36
• Europe:EN 10025 S275JR
• Germany:DIN 17100 St 37-2
• Japan:JIS SS400

Why choose Compraço

• National distributor specialized inASTM A36 heavy and structural plates;
• Technical supply with certification of originCSN / Usiminas;
• Complete industrial cutting and forming processing;
• Specialized technical assistance for works and structural projects;
• National delivery with guaranteed quality and traceability.

3/8" ASTM A36 (9.53 mm) Carbon Steel Plate— hot-rolled structural steel, ideal for industrial, mechanical, and engineering applications.Purchaseprovides certified, custom-made sheets with recognized quality throughout the country.
