Fiber Laser Cutting Speed Chart

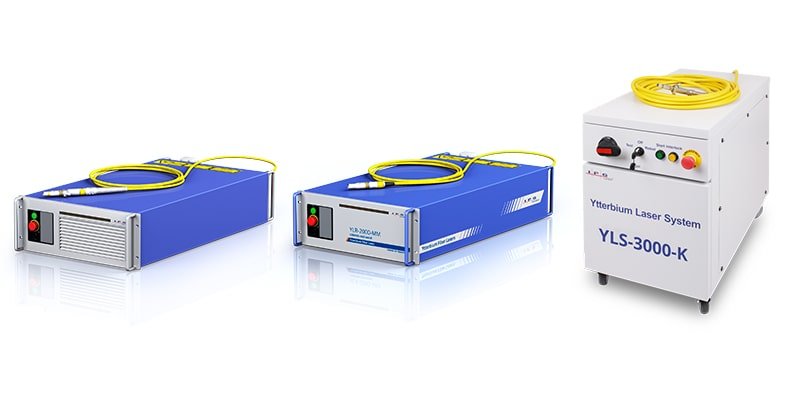

![Fiber Laser Cutting Speed 1000-6000W](https://storage.googleapis.com/medium-feed.appspot.com/images%2F9353691196%2Fd58c1539d0bad-Grafico-de-velocidade-de-corte-a-laser-de-fibra-1000-6000W.jpg)
Comments:
- The blue color indicates that simple or low-requirement shapes can be cut on a small scale, but it may be a little difficult.
- The red color indicates that the sample cutting is correct, but it cannot be used for batch cutting.
- For power IPG3000W or above, we sincerely recommend using nitrogen when cutting thin carbon steel to increase cutting efficiency.
Material | Thickness (mm) |
IPG 1000 |
IPG 1500 |
IPG 2000 |
IPG 2000 |
IPG 3,000 |
IPG 4000 |
IPG 6,000 |
---|---|---|---|---|---|---|---|---|
Center diameter | ||||||||
50um | 100um | 50um | 100um | 100um | 100um | 100um | ||
(m/min) | ||||||||
Carbon steel (O2) |
1 | 7.0-9.0 | 7.0-11.0 | 7.0-12.0 | 7.0-12.0 | 7.0-12.0 | 8.0-12.0 | 8.0-12.0 |
two | 5.0-6.0 | 5.0-6.5 | 5.0-6.5 | 5.0-6.5 | 5.0-7.0 | 5.0-7.5 | 5.0-7.5 | |
3 | 2.5-3.0 | 2.8-3.8 | 3.0-4.6 | 3.0-4.6 | 3.5-5.0 | 3.8-5.0 | 3.8-5.0 | |
4 | 2.0-2.4 | 2.5-3.2 | 2.8-4.0 | 2.8-4.0 | 3.0-4.2 | 3.5-4.5 | 3.5-4.5 | |
5 | 1.5-1.8 | 1.8-2.5 | 2.2-3.2 | 2.2-3.2 | 2.5-3.6 | 3.0-3.8 | 3.0-3.8 | |
6 | 1.4-1.6 | 1.6-2.2 | 2.0-2.8 | 2.0-2.8 | 2.4-3.0 | 2.6-3.2 | 2.6-3.2 | |
8 | 1.0-1.2 | 1.1-1.5 | 1.4-2.0 | 1.4-2.0 | 1.8-2.4 | 2.0-2.5 | 2.0-2.5 | |
10 | 0.75-0.85 | 1.0-1.2 | 1.1-1.4 | 1.1-1.4 | 1.2-1.8 | 1.8-2.1 | 1.8-2.1 | |
12 | 0.6-0.7 | 0.9-1.0 | 0.9-1.2 | 0.9-1.2 | 1.0-1.5 | 1.0-1.5 | 1.0-1.5 | |
16 | 0.60-0.75 | 0.60-0.75 | 0.7-0.85 | 0.7-0.85 | 0.7-0.85 | |||
20 | I can't cut | 0.4-0.5 | 0.6-0.75 | 0.6-0.75 | 0.6-0.75 | |||
22 | 0.50-0.65 | 0.55-0.65 | 0.55-0.65 | |||||
25 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | |||||
Stainless steel (N2) |
1 | 15-18 | 10.0-15.0 | 35.0-50.0 | 20.0-28.0 | 35.0-50.0 | 45.0-55.0 | 45.0-55.0 |
two | 4.5-6.0 | 5.0-7.0 | 10.0-15.0 | 9.0-13.0 | 15.0-23.0 | 18.0-27.0 | 20.0-35.0 | |
3 | 2.0-2.4 | 3.0-4.0 | 5.0-7.0 | 4.0-6.5 | 7.0-11.0 | 10.0-15.0 | 15.0-20.0 | |
4 | 1.0-1.5 | 2.0-2.8 | 3.5-4.5 | 3.0-4.5 | 4.0-6.0 | 5.0-7.5 | 10.0-14.0 | |
5 | 0.75-0.85 | 1.2-1.7 | 1.8-2.5 | 1.8-2.5 | 2.5-4.0 | 4.0-5.0 | 8.0-12.0 | |
6 | 0.7-1.0 | 0.7-0.8 | 1.2-1.8 | 2.0-3.2 | 3.0-4.0 | 6.0-8.0 | ||
8 | 0.5-0.7 | 0.5-0.6 | 0.7-1.0 | 1.2-1.8 | 1.5-2.6 | 3.5-4.0 | ||
10 | 0.5-0.6 | 0.7-0.9 | 0.7-1.3 | 1.8-2.2 | ||||
12 | 0.3-0.4 | 0.4-0.6 | 1.2-1.5 | |||||
14 | 0.3-0.5 | 0.8-1.2 | ||||||
16 | 0.3-0.5 | 0.6-0.8 | ||||||
20 | 0.3-0.4 | |||||||
aluminum alloy (N2) |
1 | 10.0-15.0 | 30.0-45.0 | 13.0-25.0 | 30.0-38.0 | 35.0-40.0 | 45.0-55.0 | |
two | 5.0-6.0 | 10.0-15.0 | 7.0-10.0 | 12.0-16.0 | 13.0-22.0 | 20.0-30.0 | ||
3 | 2.5-3.5 | 5.0-7.0 | 4.0-6.0 | 6.5-8.0 | 7.0-13.0 | 13.0-18.0 | ||
4 | 1.4-2.0 | 3.5-5.0 | 2.5-3.5 | 3.5-5.0 | 4.0-5.5 | 10.0-12.0 | ||
5 | 0.8-1.0 | 2.0-3.0 | 1.4-1.8 | 2.5-3.5 | 3.0-4.0 | 5.0-8.0 | ||
6 | 0.5-0.6 | 1.5-2.0 | 0.8-1.2 | 1.8-3.0 | 2.2-3.5 | 4.0-6.0 | ||
8 | 0.5-0.6 | 0.6-0.8 | 0.9-1.3 | 0.9-1.6 | 2.0-3.0 | |||
10 | 0.4-0.7 | 0.55-1.0 | 1.0-1.9 | |||||
12 | 0.3-0.45 | 0.4-0.6 | 0.8-1.4 | |||||
16 | 0.3-0.4 | 0.6-0.9 | ||||||
Copper (N2) |
1 | 8.0-12.0 | 12.0-18.0 | 10.0-16.0 | 20.0-32.0 | 25.0-30.0 | 45.0-55.0 | |
two | 3.5-5.0 | 6.0-8.5 | 6.0-8.0 | 9.0-11.0 | 10.0-13.0 | 25.0-35.0 | ||
3 | 1.5-2.2 | 2.5-4.0 | 2.5-4.0 | 4.0-6.0 | 5.0-6.5 | 12.0-18.0 | ||
4 | 1.0-1.2 | 1.5-1.8 | 1.6-2.2 | 3.0-4.5 | 3.0-5.2 | 8.0-10.0 | ||
5 | 0.6-0.8 | 0.8-1.2 | 0.9-1.2 | 1.5-2.0 | 2.0-3.0 | 4.5.0-6.0 | ||
6 | 0.4-0.5 | 0.4-0.7 | 1.0-1.6 | 1.4-2.0 | 3.0-4.0 | |||
8 | 0.5-0.6 | 0.7-0.8 | 1.6-2.2 | |||||
10 | 0.2-0.3 | 0.8-1.2 | ||||||
Stainless steel (High pressure air) |
1 | 35.0-50.0 | 20.0-28.0 | 35.0-50.0 | 45.0-55.0 | 45.0-55.0 | ||
two | 10.0-15.0 | 9.0-12.0 | 15.0-23.0 | 18.0-27.0 | 20.0-35.0 | |||
3 | 5.0-7.0 | 4.0-6.0 | 7.0-11.0 | 10.0-15.0 | 15.0-20.0 | |||
4 | 3.5-4.5 | 3.5-4.0 | 4.0-6.5 | 5.0-6.5 | 10.0-14.0 | |||
5 | 1.8-2.5 | 1.5-2.0 | 2.5-4.0 | 3.5-5.0 | 8.0-12.0 | |||
6 | 0.7-0.8 | 1.0-1.2 | 2.0-3.2 | 3.0-4.5 | 6.0-8.0 | |||
8 | 1.2-1.8 | 1.5-2.6 | 3.5-4.0 | |||||
10 | 0.7-0.9 | 0.6-1.2 | 1.8-2.2 | |||||
12 | 1.2-1.5 | |||||||
aluminum alloy (Air) |
1 | 30.0-45.0 | 13.0-25.0 | 35.0-50.0 | 45.0-55.0 | 45.0-50.0 | ||
two | 10.0-16.0 | 7.0-12.0 | 12.0-20.0 | 18.0-27.0 | 20.0-30.0 | |||
3 | 5.0-7.0 | 4.0-6.0 | 6.5-9.0 | 9.0-14.0 | 13.0-18.0 | |||
4 | 3.5-5.0 | 2.5-4.0 | 4.0-5.5 | 4.5-6.5 | 10.0-12.0 | |||
5 | 2.0-3.0 | 1.4-1.8 | 2.5-3.5 | 3.5-5.0 | 5.0-8.0 | |||
6 | 1.2-2.0 | 0.8-1.5 | 1.8-3.0 | 3.0-4.0 | 4.0-6.0 | |||
8 | 0.9-1.3 | 1.5-2.0 | 2.0-3.0 | |||||
10 | 0.7-0.8 | 0.5-0.8 | 1.0-1.9 | |||||
Copper (Air) |
1 | 18-28.0 | 13.0-22.0 | 25.0-36.0 | 18.0-35.0 | 35.0-45.0 | ||
two | 8-12.0 | 6.0-10.0 | 7.0-10.0 | 10.0-15.0 | 15.0-30.0 | |||
3 | 1.5-2.5 | 2.5-5.0 | 5.0-6.0 | 6.0-7.5 | 10.0-15.0 |
