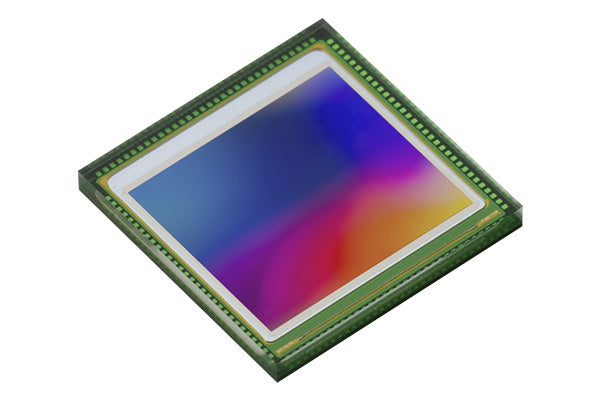

ams' NIR OSRAM Mira220 1/2.7 2.2MP Enhanced Global Shutter Image Sensors are designed for use in 2D and 3D industrial and consumer vision applications. These sensors feature a small pixel size of 2.79 μm with high sensitivity thanks to state-of-the-art BSI technology. The series offers an effective resolution of 1600 (H) x 1400 (V) and a maximum depth of 12 bits, supporting on-chip operations such as external triggering, windowing, and horizontal or vertical mirroring. The maximum frame rate is 90fps at full resolution and bit depth. Mira220 sensors use the MIPI CSI-2® interface for easy interaction with processors and FPGAs. The on-chip registers can be accessed via the I 2 Interface C standard for easy configuration of the sensors.
ams OSRAM Mira220 1/2.7 2.2MP NIR Enhanced Global Shutter Image Sensors feature low power consumption for extended battery operation. Typical applications include mobile facial authentication, smart home appliances, QR readers, AR/VR, drones, smart wearables, structured light vision, and more.
Characteristics:
- Compact size with high resolution and bit depth
- Suitable for high speed applications
- High sensitivity for use in low light conditions
- Small die size achieved through state-of-the-art BSI technology
- Enhanced NIR with high sensitivity
- Available as Mono, RGB or RGBIR variant
- On-chip noise reduction
- Reduced off-chip processing
- On-chip defect pixel detection and correction
- Generation of on-chip image statistics
- Low power consumption for long battery operation
Application:
- Mobile facial authentication
- Active stereo vision
- Smart home appliances
- QR Readers
- Automatic Identification and Data Capture (AIDC)
- AR/VR
- Structured Light Vision
- Drones
- Smart wearable devices
- SLAM for robotics
Specifications:
- 1/2.7” optical format
- 1600 (H) x 1400 (V) active pixels
- 8/10/12 bit depth
- Pixel pitch 2.79 µm x 2.79 µm
- 90fps global shutter with CDS
- Output interface bit rate 1.5 Gbit/s
