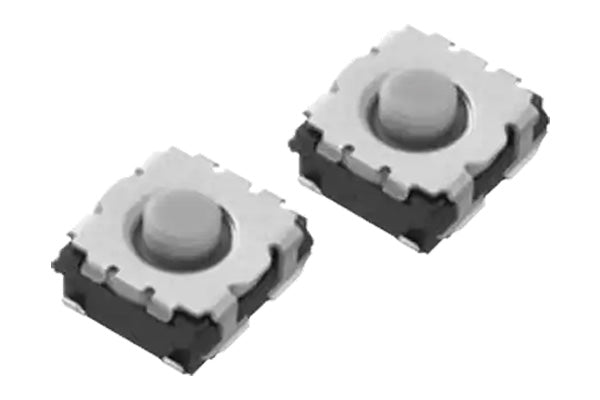

The Panasonic EVPBV 6.5mm x 6.2mm SMD Tactile Switches are compact IP67 SPST surface mount switches. These momentary switches feature a long cycle life of 200k to 300k as well as operating forces of 1.6n and 2.5n. Panasonic EVPBV 6.5mm x 6.2mm SMD tactile switches are suitable for various applications including home appliances, electronic equipment and industrial equipment.
Characteristics:
- Instant action
- SPST
- 5mm and 4.3mm height settings
- 5mm x 6.2mm
- IP67 rating
- Long life:
- 300,000 cycles (Operating Force: Type 1.6 N)
- 200,000 cycles (Operating Force: Type 2.5 N)
Forms:
- Electronic equipment
- Home appliances
- Industrial equipment
Specifications:
- External dimensions: 6.5mm × 6.2mm
- Height 3.5mm, 4.3mm
- IP67
- Rating 10 µA 2 V DC to 20 mA 15 V DC (resistive load)
- Max contact resistance 500 mΩ
- Min. insulation resistance 100 MΩ (at 100 V DC)
- Withstand dielectric voltage 250 V AC for 1 minute
- Skipping Max 10ms (ON, OFF)
- Operating temperature 40°C to +85°C
- Storage temperature 40°C to +85°C (in bulk)
- 20℃ to +60℃ (recording)
- Minimum Quantity / Packaging Unit 1,000 units. Embossing (reel pack)
- Quantity / Box 1,000 units.
