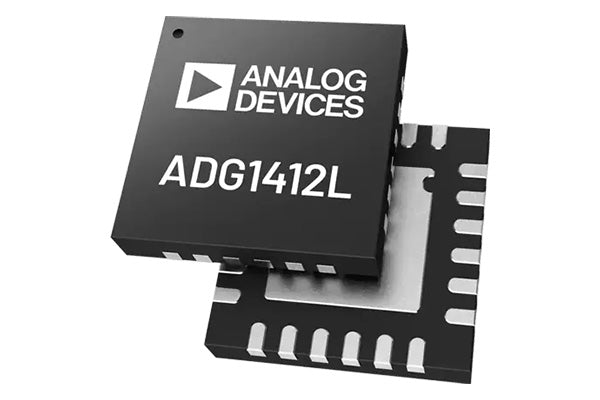

The ADG1412L Quad Single-Pole/Single-Throw (SPST) switch is a monolithic complementary metal-oxide semiconductor (CMOS) device containing four independently selectable switches designed using the iCMOS® process. The four SPST switches are wired with a logic and an external V I source, which provides flexibility for lower logic control. This ADG1412L switch offers a maximum resistance of 2.6Ω over temperature and guaranteed shutdown when the digital inputs are floating. The resistance profile is flat across the entire analog input range during signal switching, ensuring excellent linearity and low distortion (1.5Ω typical).
The ADG1412L switch is compliant with the JEDEC standard for 1.2V (JESD8-7A) and 1.8V (JESD8-12A.01) logic levels. This ADG1412L switch features rail-to-rail operation, minimal distortion and comes with 4mm x 4mm body dimensions. Typical applications include audio and video signal routing, relay replacement, communications systems, automated test equipment, and battery-powered systems.
Characteristics:
- 1.5Ω resistance for dual supply of ±15V at 25°C
- 0.3Ω resistance flatness for dual ±15V supply at 25°C
- 0.1Ω resistance matching between channels for dual ±15V supply at 25°C
- Fully specified at ±15V, +12V and ±5V:
- Dual power operating range of ±4.5V to ±16.5V
- Single power operating range 5V to 16.5V
- V I source for logical low-level compatibility:
- Compliant with 1.8V JEDEC standard (JESD8-7A)
- Compliant with JEDEC 1.2V standard (JESD8-12A.01)
- Rail-to-rail operation
- 24-Lead LFCSP, 4mm x 4mm
Specifications:
- 2.6Ω maximum over temperature resistance
- Minimal distortion
- Guaranteed shutdown when digital inputs are floating
Forms:
- Automated Test Equipment
- Data Acquisition Systems
- Battery powered systems
- Sampling and retention systems
- FPGA systems and microcontrollers
- Audio signal routing
- Video signal routing
- Communication systems
- Relay replacement
