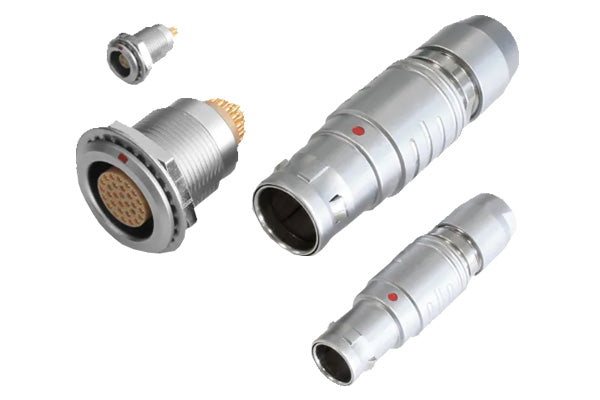

Bulgin X Series Push-Pull Connectors feature a secure push-pull locking system with 360° EMI shielding, high-density panel spacing, and fast mating and demating. The X Series includes the 00 to 3X family size range with multiple 2 to 30 contacts. Other features include multiple key options to prevent mating errors, solder contacts, and over 4,500 life cycles. These RoHS compliant connectors operate in a temperature range of -50°C to +250°C. Bulgin X Series Push-Pull Connectors are designed for indoor and vacuum-tight applications such as general purpose, medical, test and measurement, research, communications, audio and video, military, aerospace, industrial control, nuclear and surveillance.
Characteristics:
- Secure push-pull automatic locking system
- Rapid mating and unmating
- Multiple key options to prevent incorrect mating
- solder contacts
- High packing density for space saving in fixed sockets (panel mount connectors) and straight connectors
- RoHS Compliant
Forms:
- General purpose
- Doctor
- Test and measurement
- To look for
- Communications
- Audio video
- Military
- Aerospace
- Industrial control
- Nuclear
- Surveillance
Specifications:
- 360° screening for complete EMI shielding
- Multiple contacts from 2 to 30
- Family Size Range 00 to 3X
- >4500 cycles
- IP50 rating
- Operating temperature range from -50°C to +250°C
