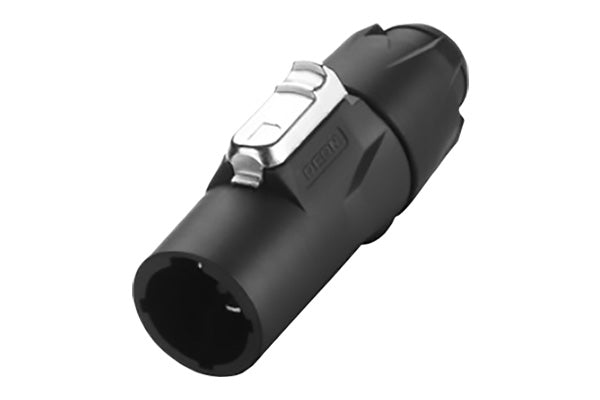

REAN Power These connectors are designed for outdoor applications and feature a locking power output connector. REAN Power X IP65 XLR power connectors feature a polyamide shell and insert, along with copper alloy contacts.
Characteristics:
- 2 contacts + PE
- Power Ratings: Europe 16A 250VAC, USA 20A 250VAC
- 4kV DC /2.8kV AC dielectric strength
- ≤2mΩ contact resistance
- >0.1GΩ insulation resistance
- Twist lock
- >5000 mating cycles
- Cable outer diameter range 6-12mm
- Screw Terminal Wiring
- 12AWG wire thickness
Mechanic:
- Retention method – Twist lock
- Lifespan – >5,000 mating cycles
Material:
- Shell – Polyamide
- Insert – Polyamide
- Contacts – Copper alloy
- Contact Coating – Ag
- Strain Relief – PBT
Environmental:
- Temperature range -30°C to +80°C
- Flammability UL94
