Calculate weight of rectangular bar

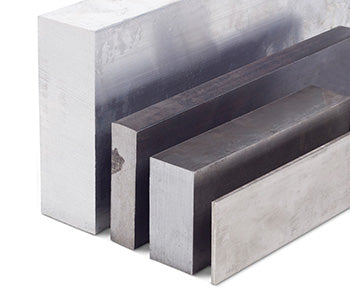

What is a rectangular bar?

A rectangular steel bar is a kind of solid material with a rectangular shape, commonly used in the construction industry, machinery manufacturing and other fields. To calculate the weight of a rectangular steel bar, you can use the formula:

๐‘ƒ = ๐ฟ ร— ๐ด ร— Spec Weight ฤฑ หŠ I am

Where:

  • ๐‘ƒ is the weight of the bar in kg;
  • ๐ฟ is the length of the bar in meters;
  • ๐ด is the cross-sectional area of โ€‹โ€‹the bar in ๐‘š two ;
  • The specific weight of steel is approximately 7850 kg/mยณ.

The cross-sectional area of โ€‹โ€‹a rectangular bar is given by:

๐ด = ๐ฟ ๐‘Ž ๐‘Ÿ ๐‘” ๐‘ข ๐‘Ÿ ๐‘Ž ร— ๐ด ๐‘™ ๐‘ก ๐‘ข ๐‘Ÿ ๐‘Ž

Therefore, to calculate the weight of a rectangular steel bar with width ๐ฟ ๐‘ค , height ๐ฟ โ„Ž and length ๐ฟ , the formula would be:

๐‘ƒ = ๐ฟ ร— ( ๐ฟ ๐‘ค ร— ๐ฟ โ„Ž ) ร— 7850

For example, if we have a rectangular bar with a width of 50 mm (0.05 m), a height of 20 mm (0.02 m) and a length of 1 meter, the calculation would be:

๐‘ƒ = 1 ร— ( 0 , 05 ร— 0 , 02 ) ร— 7850

๐‘ƒ = 1 ร— ( 0 , 001 ) ร— 7850

๐‘ƒ = 7 , 85 kg

Therefore, the weight of the rectangular steel bar with these dimensions would be approximately 7.85 kg.

Rectangular Bar Weight Table

Specifications. Weight (kg/m)
20*20*1.2 0.75
25*25*1.2 0.94
40*40*2 2.29
40*40*2.5 3.02
40*40*4 4.68
50*30*2.5 3.02
50*30*3 3.6
50*32*2 2.2
50*35*2.5 3.32
50*50*2.5 3.81
50*50*3 4.44
50*50*4 5.74
55*38*2 2.8
60*40*2.5 3.81
60*40*3 4.44
60*40*4 5.74
60*60*2.5 4.52
60*60*3 5.38
60*60*4 7.02
70*50*4 7.02
70*70*4 8.22
70*70*5 10.2
80*60*3 7.09
80*60*4 8.22
80*60*5 10:25 am
80*80*4 9.96
80*80*6 13.85
90*40*2.5 5.19
90*60*5 10:47 am
100*60*3 7.3
100*60*4 9.16
100*60*5 11.53
100*60*4.5 2:41 p.m.
100*100*4 11:65
100*100*8 23
120*120*4 14.16
160*80*4.5 15.84
160*160*4.5 19.2
220*80*6 27.1
