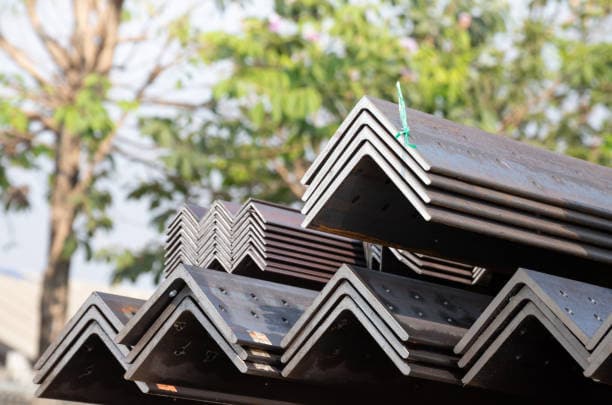

What is L shaped steel?
L-shaped steel, commonly referred to as angle steel, is a new type of profile designed to meet the demands of large-scale shipbuilding.
When its height is equal to that of a flat steel profile, L-shaped steel has a higher section coefficient and greater stiffness compared to spherical flat steel.
Having a larger section coefficient increases a ship's storage capacity and increases its economic efficiency.
Furthermore, with the same section coefficient, the L-shaped steel panel is slightly thinner than the spherical flat steel, which benefits the welding quality.
Steel L Beam Type
L-shaped steel is mainly categorized into two types: equal angle steel and unequal angle steel. The latter can further be divided into two subtypes: equal thickness on unequal sides and unequal thickness on unequal sides.
Calculate weight of steel L beam (angle steel)
According to the dimensional, shape, weight and allowable deviation specifications of hot rolled steel section (GB/T 706-2008), the length of hot rolled L steel beam is generally between 5m and 19m.
Typically, L beam steel can be delivered based on actual weight or theoretical market weight. The deviation between the theoretical weight and the actual weight of L-beam steel should not exceed ±5% to ±3%.
Steel Weight Table for L Beam
Equilateral Angle Steel Theoretical Weight Table
| Specifications (Length*Thickness) mm | Weight (kg/m) |
| 20*3 | 0.89 |
| 20*4 | 1.15 |
| 25*3 | 1.12 |
| 25*4 | 1.46 |
| 30*3 | 1.37 |
| 30*4 | 1.79 |
| 36*3 | 1.66 |
| 36*4 | 2.16 |
| 36*5 | 2.65 |
| 40*3 | 1.85 |
| 40*4 | 2.42 |
| 40*5 | 2.98 |
| 45*3 | 2.09 |
| 45*4 | 2.74 |
| 45*5 | 3.37 |
| 45*6 | 3.99 |
| 50*3 | 2.33 |
| 50*4 | 3.06 |
| 50*5 | 3.77 |
| 50*6 | 4.46 |
| 56*3 | 2.62 |
| 56*4 | 3.45 |
| 56*5 | 4.25 |
| 56*8 | 6.57 |
| 63*4 | 3.91 |
| 63*5 | 4.82 |
| 63*6 | 5.72 |
| 63*8 | 7.47 |
| 63*10 | 9:15 am |
| 70*4 | 4.37 |
| 70*5 | 5.4 |
| 70*6 | 6.41 |
| 70*7 | 7.4 |
| 70*8 | 8.37 |
| 75*5 | 5.82 |
| 75*6 | 6.91 |
| 75*7 | 7.98 |
| 75*8 | 9.03 |
| 75*10 | 11.09 |
| 80*5 | 6.21 |
| 80*6 | 7.38 |
| 80*7 | 8.53 |
| 80*8 | 9.66 |
| 80*10 | 11.87 |
| 90*6 | 8:35 am |
| 90*7 | 9.66 |
| 90*8 | 10.95 |
| 90*10 | 1:48 p.m. |
| 90*12 | 15.94 |
| 100*6 | 9:37 am |
| 100*7 | 10.83 |
| 100*8 | 12.28 |
| 100*10 | 15.12 |
| 100*12 | 17.9 |
| 100*14 | 20.61 |
| 100*16 | 23.26 |
| 110*7 | 11.93 |
| 110*8 | 13.53 |
| 110*10 | 16.69 |
| 110*12 | 19.78 |
| 110*14 | 22.81 |
| 125*8 | 15.5 |
| 125*10 | 19.13 |
| 125*12 | 22.7 |
| 125*14 | 26.19 |
| 140*10 | 9:49 p.m. |
| 140*12 | 25.52 |
| 140*14 | 29:49 |
| 140*16 | 33.39 |
| 160*10 | 24.73 |
| 160*12 | 29:39 |
| 160*14 | 33.99 |
| 160*16 | 38.52 |
| 180*12 | 33.16 |
| 180*14 | 38.38 |
| 180*16 | 43.54 |
| 180*18 | 48.63 |
| 200*14 | 42.89 |
| 200*16 | 48.68 |
| 200*18 | 54.4 |
| 200*20 | 60.06 |
| 200*24 | 71.17 |
Unequal Angle Steel Theoretical Weight Table
| Specifications (Length*Thickness) mm | Weight (kg/m) |
| 25*16*3 | 0.91 |
| 25*16*4 | 1.18 |
| 32*20*3 | 1.17 |
| 32*20*4 | 1.52 |
| 40*25*3 | 1.48 |
| 40*25*4 | 1.94 |
| 45*28*4 | 1.69 |
| 45*28*5 | 2.2 |
| 50*32*3 | 1.91 |
| 50*32*4 | 2.49 |
| 56*36*3 | 2.15 |
| 56*36*4 | 2.82 |
| 56*36*5 | 3.47 |
| 63*40*4 | 3.19 |
| 63*40*5 | 3.92 |
| 63*40*6 | 4.64 |
| 63*40*7 | 10 |
| 70*45*4 | 3.57 |
| 70*45*5 | 4.4 |
| 70*45*6 | 5.22 |
| 70*45*7 | 6.01 |
| 75*50*5 | 4.81 |
| 75*50*6 | 5.7 |
| 75*50*8 | 7.43 |
| 75*50*10 | 9.1 |
| 80*50*5 | 5 |
| 80*50*6 | 5.93 |
| 80*50*7 | 6.85 |
| 80*50*8 | 7.75 |
| 90*56*5 | 5.66 |
| 90*56*6 | 6.72 |
| 90*56*7 | 7.76 |
| 90*56*8 | 8.78 |
| 100*63*6 | 7.55 |
| 100*63*7 | 8.72 |
| 100*63*8 | 9.88 |
| 100*63*10 | 12.1 |
| 100*80*6 | 8:35 am |
| 100*80*7 | 9.66 |
| 100*80*8 | 10.9 |
| 100*80*10 | 13.5 |
| 110*70*6 | 8:35 am |
| 110*70*7 | 9.66 |
| 110*70*8 | 10.9 |
| 110*70*10 | 13.5 |
| 125*80*7 | 11.1 |
| 125*80*8 | 12.6 |
| 125*80*10 | 15.5 |
| 125*80*12 | 18.3 |
| 140*90*8 | 14.2 |
| 140*90*10 | 17.5 |
| 140*90*12 | 20.7 |
| 140*90*14 | 23.9 |
| 160*100*10 | 19.9 |
| 160*100*12 | 23.6 |
| 160*100*14 | 27.2 |
| 160*100*16 | 30.8 |
| 180*110*10 | 22.3 |
| 180*110*12 | 26.5 |
| 180*110*14 | 30.6 |
| 180*110*16 | 34.6 |
| 200*125*12 | 29.8 |
| 200*125*14 | 34.4 |
| 200*125*16 | 39 |
| 200*125*18 | 43.6 |
